Wires & Cables

Products

  • MV POWER CABLES

    POLYCAB

    3.3Kv to 33Kv Grade- (BASEC/KEMA/CPRl/ERDA tested)

    Three core Copper / Aluminium Conductor Conductor screened with extruded semi-conducting compound XLPE Insulated insulation screened with semiconducting compound in combination with copper tape (0.3 KA for One Sec.)

  • MV SINGLE CORE POWER CABLES

    POLYCAB

    3.3kv to 33kv grade-(BASEC/KEMA/CPRl/ERDA Tested)

    Single core copper /Aluminium Conductor

    Conductor screened with extruded semi-conducting compound (11KV E & above)

    XLPE Insulated

    Insulation screened with semiconducting compound (11KV E & above) in combination with copper tape

    Unarmoured/ Aluminium Flat Strip / Round Wire Armoured and verall PVC ST2/ FR/ FRLSH/ LSZH sheathed cable conforming to IS:7098/ll/85, IEC 60502-2/ BS 7835

    From sizes 35 sq.mm to 1200 Sq.mm above cables can be supplied with lead sheath whenever required.

  • LV POWER CABLES

    POLYCAB

    Copper/Aluminium solid/stranded conductor, XLPE insulated, cores laid up, PVC inner sheathed

    unarmoured/armoured

    extruded PVC/PE /LSZH sheathed cables with rated voltage 0.6/1.0 kV from 1.5 mm² to 1000 mm² in 1/2/3/3.5/4 Cores confirming to BS 5467/BS 6724/IEC 60502-1

  • LV CONTROL CABLES

    ​POLYCAB

    1100 Volts Grade- (BASEC/KEMA/CPRI/ERDA tested) Control Copper Cables

    Solid/Stranded conductor

    PVC/XLPE/HR PVC Insulated, Cores laid up

    PVC/ HR PVC/ FR/ FRLSH/ LSZH Taped/Extruded Inner Sheathed

    Unarmoured/ GI Steel (Round Wire/Flat Strip) Armoured, Extruded PVC/ HR PVC/ FR/ FRLSH/ LSZH Outer Sheathed

    Cables from 2 to 100 crore in 1.5 and 2.5.sq.mm as per IS 1554(Part1) / IS 7098(Part1) 1998

    Generally confirming to IEC60502-1/BS 5467/BS 6724

Industrial Flexible Cable

  • PVC

    POLYCAB

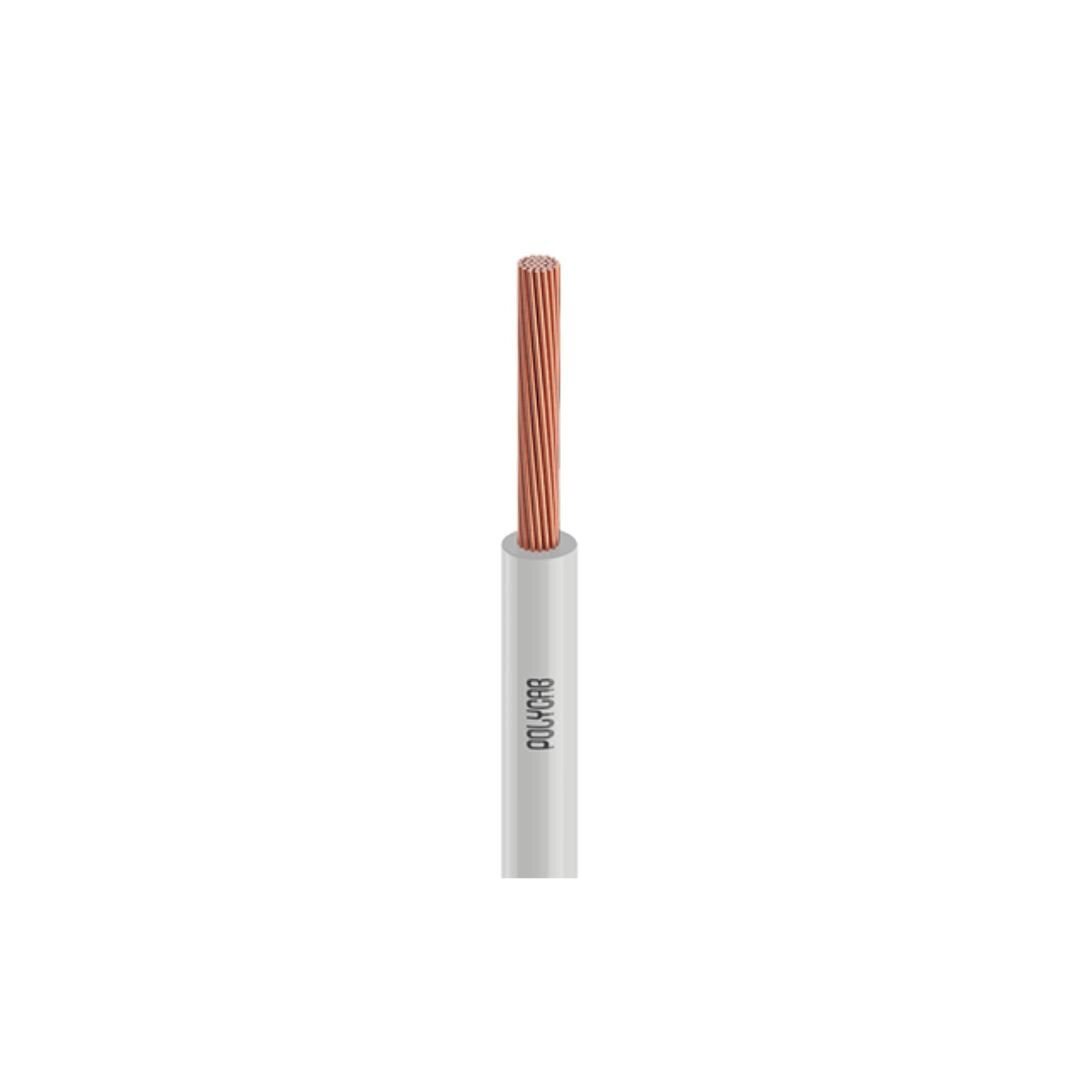

    Single core multi-stranded copper conductor, PVC insulated wires with normal flame retardant properties.

  • HRFR-Heat RETARDANT FLAME RETARDANT

    POLYCAB

    Single core multi-stranded copper conductor, HRFR PVC insulated wire with heat resistant and excellent flame retardant properties.

  • HR-HEAT RETARDANT

    POLYCAB

    Single core multi-stranded copper conductor, HR PVC insulated wire with heat resistant and normal flame retardant properties.

  • HR-FRLSH

    POLYCAB

    Single core multi-stranded copper conductor, HR-FRLSH PVC insulated wires with heat resistant, excellent flame retardant and low smoke properties.

  • SUBMERSIBLE FLAT AND ROUND CABLES

    POLYCAB

    Flat : 3 core x 1.50 SQ.MM, Round : 3 core and 4 core x 1.5 SQ.MM in class 5 copper conductors with pcv/xlpe insulation and PVC st2 sheathing properties.

  • MULTI-CORE INDUSTRIAL FLEXIBLE CABLES

    POLYCAB

    2 core to 61 core x 0.50 sq.mm to 4 sq.mm, 2 core to 4 core from 6 sq.mm to 120 sq.mm in class 5 copper conductors with different insulation and sheathing properties.

  • SINGLE CORE DC SOLAR CABLES (SINGLE CORE 2.5 SQ.MM TO 300 SQ.MM)

    POLYCAB

    Type 1 : Class 5 ATC copper conductor, insulated and sheathed with Electron beam XLPO confirming to TUV approved standard EN-50618.

    Type 3 : Class 5 Base copper conductor, XLPE insulated and PVC UV stabilized Sheathed.

  • CO AXIAL CABLES

    POLYCAB

    Range : RG 59 F, RG 6 F & RG 11 F with copper/ CCS conductor, nitrogen gas injected polyethylene foam insulated, bonded aluminium foil laminated, al-alloy braided, water resistant jelly flooded, weather resistant PVC sheathed, 75Ω low loss co-axial cable for DTH and CATV application.

  •  TELEPHONE CABLES

    POLYCAB

    Range : 1 pair to 100 pair x 0.40 mm,0.50 mm and 0.63 mm in a solid bare conductor with HDPE insulation and flame retardant jacketing having low cross talk and attenuation.

  • LAN CABLES

    POLYCAB

    Range : CAT 5E & CAT 6 – twisted pair, insulated with high-quality polyethylene and unshielded light gray PVC jacket with improved fire retardant properties, low attenuation, and cross talk and low structural return loss.

  • SPEAKER CABLES

    POLYCAB

    Range : twin parallel 23/36, 23/38, 40/36 and 40/38 – Polycab provides speaker cables with high-quality oxygen-free copper conductor ensuring excellent sound quality for your expensive sound system. Selecting the right gauge, length and type of speaker wire for your system helps to avoid a mismatch with your sound system.

  • OFC CABLE (OPTICAL FIBRE CABLE)

    POLYCAB

    Light in motion, that is how we define our Optical Fiber division. A state of the art manufacturing unit duly supported by our skilled and highly expert team. Polycab is working closely with the Government of India projects such as Digital India, Make in India, BharatNet, SmartCities for a better and futuristic India.
